9. Protocol model

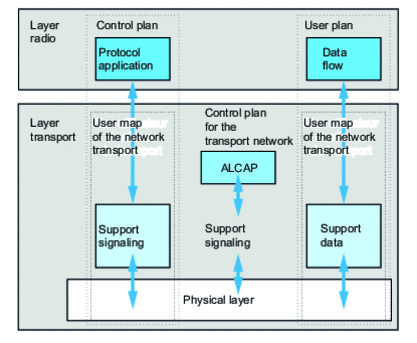

Figure 23 shows the protocol model for UTRAN interfaces. The layers and planes are logically independent, which preserves the possibilities for future development.

UTRAN interface protocol model (based on 3GPP TS 25.401) — Figure 23 - UTRAN interface protocol model (based on...
